Product |
|
Category type | Log conversion and resawing machines |
---|---|
Category | Band Resaws |
Brand | Mebor |
Specifications |
|
Condition of the item | New |
Date of manufacture | 2022 |
Volume | - Convert |
Description |
*** THE MOST PERFORMING CUTTING SYSTEM ON HORIZONTAL TECHNOLOGY 2016 - Over 300 cutting installations Sold in Romania with Recommendations in All Counties. We provide: SERVICE (5 TECHNICIANS in 5 areas of the country), Warranty, Spare parts in stock!

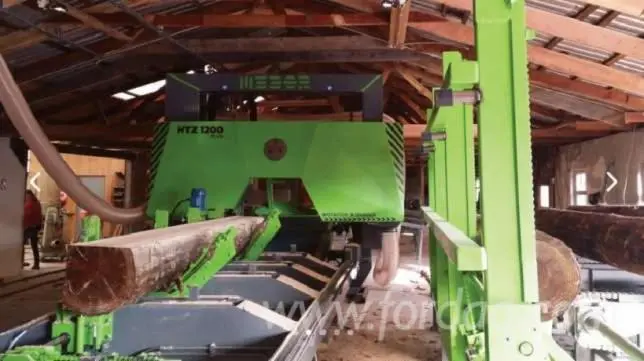

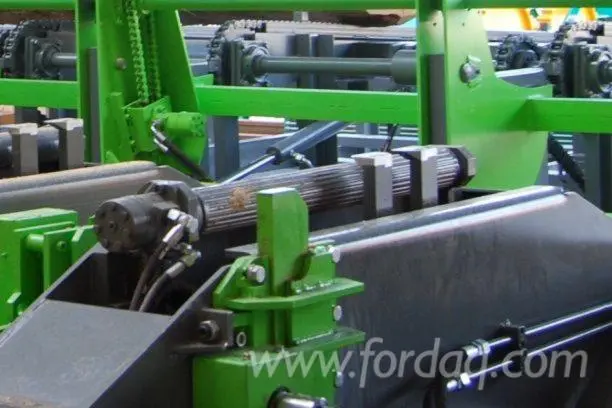

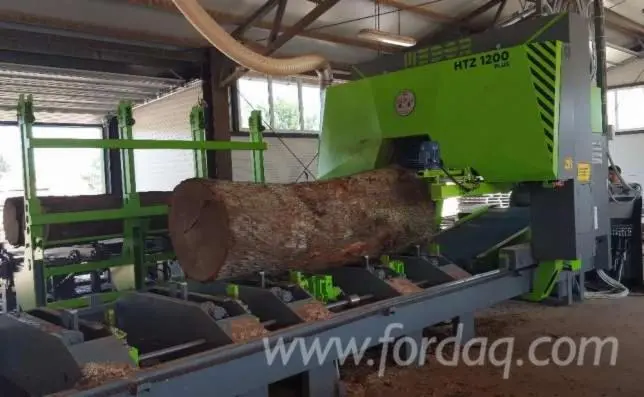

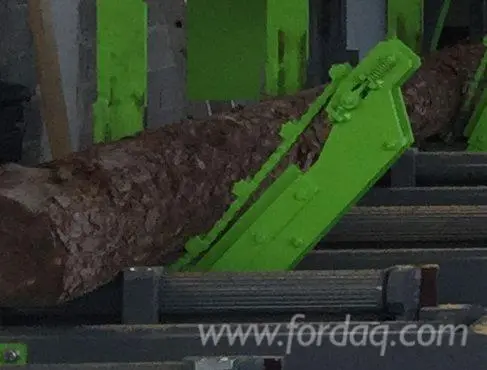

MEBOR HTZ 1200 Super-Profi Plus: -Bad length 12 m with robust structure made of special steel. -Top equipped with 4 hydraulic claws for fixing the height-adjustable log. -Top equipped with 6 hydraulic rollers (3 motorized 3 free) for the longitudinal movement of the logs and for the automatic unloading of the last timber from the machine frame -Top equipped with 6 prismution bars at 90 °. -Top equipped with 2 device for rotating the log. -Maximum log length 8,000 mm (optional larger) -Minimum log length 2,000 mm. -Maximum log diameter 1,200 mm. -Flying diameter 1,200 mm. -Flying width 140 mm. -Width ribbon width 160-180 mm. -Fabric length 7,750 mm. Fast and precise system for raising / lowering the cutting head with servomotor. Chain cutting head feed / return system with 5.5 kW motor driven. Diesel flywheel lubrication system (equipped with diesel tank and level indicator) Flywheel cleaning system with body plates. -Main engine power 55 kW -Electric pump motor power 5.5 kW Hydraulic tensioning of the blade made automatically from the button. Hydraulic movement of the blade guide performed automatically from the button. Automatic entry / exit of the engraving group. Possibility of cutting in both directions. -Automatic timber unloading device. -Praying device with incision cloth for cleaning the log before cutting. -Electronic programmer with Vision 130 system for cutting control located on the control panel -Memory of work schedules (combinations of different thicknesses) Automatic cutting head feed rate adjustment depending on main engine load. -Mebor Safety System Sensors for activating prism bars, twisting systems or hydraulic rollers to prevent accidents if the operator does not return the hydraulic systems to their basic position. Total weight 12,000 kg. - Laser Cutting line + COMBINED hydraulic cross conveyor for 4-arm logs with chain: Conveyor length 4.5 m / Conveyor width 3.6 m Minimum timber length 2 m / Maximum timber length 8 m. Horizontal ramp equipped with 3 arms with chains driven by a 4 kW gear motor. Hydraulic singularizer for timber insertion on the frame. + Motorized belt for taking over the evacuated timber + Fast debit board discharge system PRODUCTIVITY 35m3 -45m3 in 8h / shift. * We provide Leasing Financing. * The product is new, can be invoiced Externally (Slovenia). * We have different models in terms of size, productivity, cost. * The price is without VAT. - Translated with google |
Price & Conditions |
|
Price | On demand |
Delivery deadline | Available on order in more than 30 days |
Sells to: | Romania |
