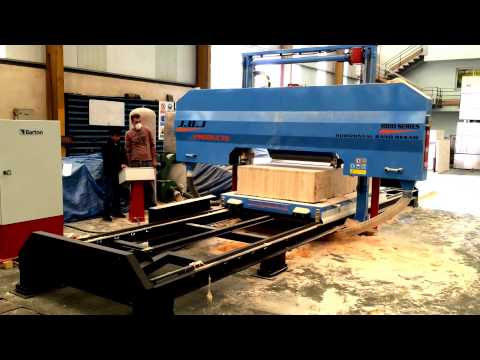

Horizontal re-sawing machine with a fixed head and a moving horizontal table designed for processing balsa wood blocks of the following dimensions:

- Width: 1,300 mm
- Length: 2,500 mm
- Height: 1,300 mm

High-strength machine-welded steel structure. Its 1,000 mm diameter and 70 mm wide flywheels allow the use of saws up to 80 mm wide, achieving excellent cut quality even at high speeds. Its quality, low maintenance, reliability, and precision make this machine a benchmark in the market.

Technical Specifications:

• Flywheel diameter: 1,000 mm
• Flywheel width: 70 mm

• Saw motor power: 30 HP
• Electromagnetic safety brake included

• Saw blade length: 8,400 mm
• Saw blade width: 80 mm (recommended)
• Saw blade thickness: 1.0 mm (recommended)

• Type of guides used: Pressure guides

• Tensioning system: Manual with tension indicator

• Feeding system: Horizontal table with offset
• Clamping system: Manual clamping jaws
• Feeding width: 1,300 mm
• Feeding motor power: 1.5 HP
• Feeding speed: 5-35 m/min with variable frequency drive regulation

• Positioning system: Servo motor and measuring device with touch screen

• Minimum cutting width 50 mm
• Maximum cutting width 1,300 mm
• Maximum cutting length 2,500 mm
• Minimum cutting thickness 10 mm

• Electrical panel included
• Approximate machine dimensions: Width 3900 mm; Length 2600 mm; Height 2400 mm
• Working height 400 mm
• Approximate machine weight 2,500 kg
