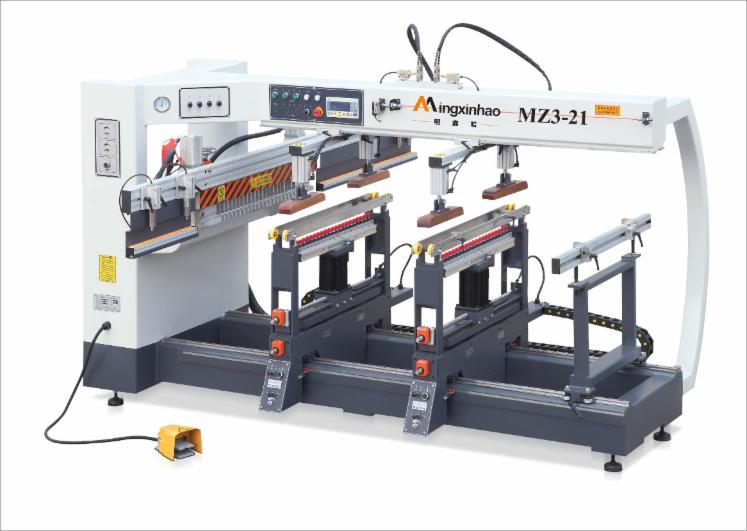

Three-rows multi-head boring machine
This offer is expired since 2012-Aug-29

  • Offer 17891419
  • Date2012-May-31
  • Status: The offer has expired.
Drilling   Boring   Dowelling   Turning

Product

Category:
Automatic drilling machine
Model:
MZ3-21

Specifications

Date of manufacture:
new
Quantity:
1 pc
Comment:
Max. drilling diameter  Ømax=35mm (single drill)                              Ød=13mm (multi drill)
Max. drilling depth  H max=60mm
Max. processing pitch 1840x672mm
Min.processing pitch 130x32mm
Total number of drilling shafts 63 pcs
Total number of drilling rows 21x3 rows
Installing dia to the drill Ø10mm

Distance between spindle 1650mm
Working pressure 0.5~0.6Mpa
Total power of motor 4.5kw
Spindle speed 2840rpm
Exterior of machine 2740x2500x1600mm
Weight of machine 1550 kgs

Price & Conditions

Price:
Country: China
Availability: Available on order in less than 30 days

Preferred markets

Sells to: Worldwide
