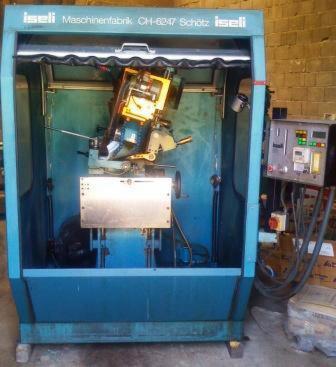

Sharpening and Machine Maintenance, Automatic Saw Swaging Machine, ISELI

  • Offer
    17842488
  • Date
    2012-06-01
  • Status : The offer was deactivated

Product

Category type Sharpening and Machine Maintenance
Category Automatic Saw Swaging Machine
Brand ISELI
Model AS 2

Specifications

Date of manufacture 1994
Quantity 1
Description Power requirements: Engines: grinding motor 0.75 kW drive motor 0.25 KW cooling water pump 0.21 KW air: 6 bar saws diameter: for dry grinding machine Standard 250-1000 mm for dry grinding machine with base or mine 250-1600 mm for wet grinding machine with compartment cover 250-1200 mm Boater bore diameter: 22 - 210 mm tooth spacing: 15 - 100 mm tooth height: max. 40 mm tooth shapes: pointed tooth / arch tooth / wolf tooth grinding ways: 1. Straight cut normal - tooth face and tooth jerking 2. bevel grinding normal - tooth face 0 - 15 ° - tooth back 0-8 ° 3.Schrägschliff special - tooth face no bevel grinding 0-8 ° - tooth back ground bevel 0 - 30 ° - rake angle about 10 - 20 ° - clearance angle tooth jerking (depending on Zahnformexzenter and tooth height) feed rate with frequency - 4 speeds across the entire tooth shape freely programmable corundum grinding wheel diameter max. 250 mm borazon 200 mm 200 mm diamond grinding wheel bore 25 mm grinding wheel width 8/10/12/16 mm - Translated with google

Price & Conditions

Price On demand
Availability In Stock
Sells to: Worldwide
